Back To Project Page:

Install Hunter Star:

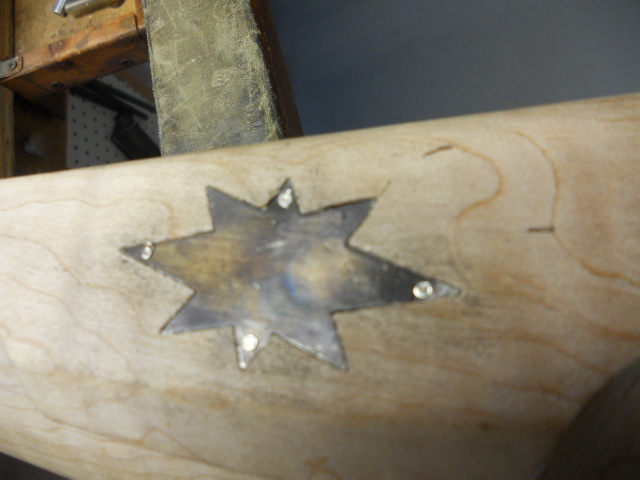

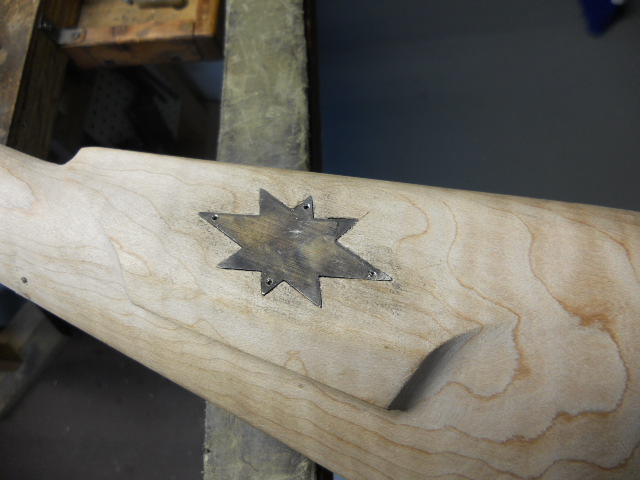

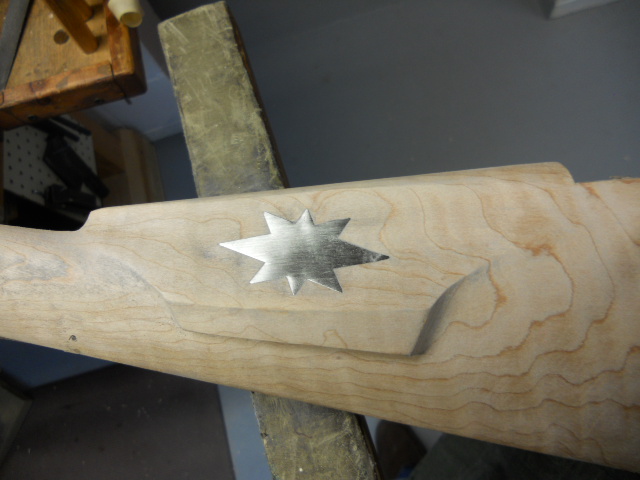

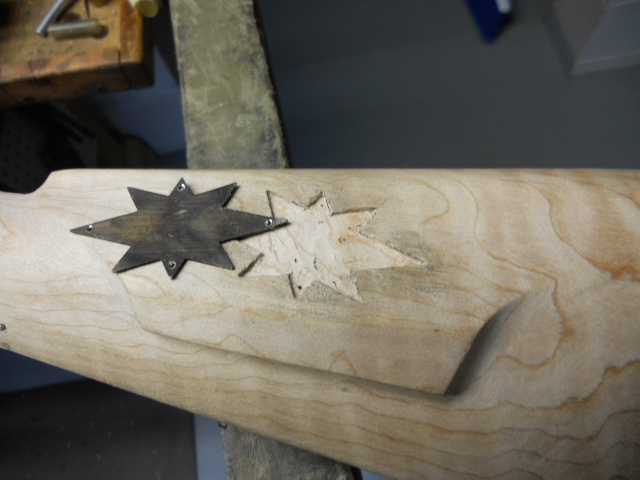

The following photos show the process of installation:

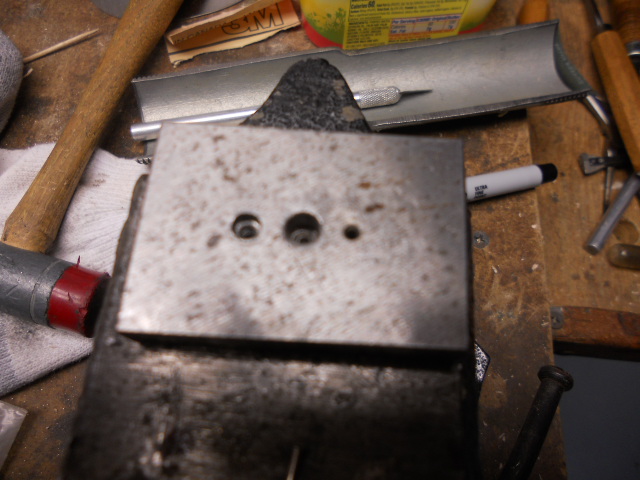

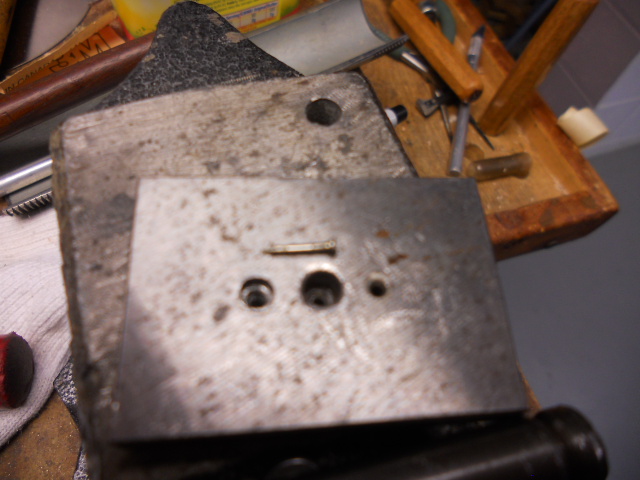

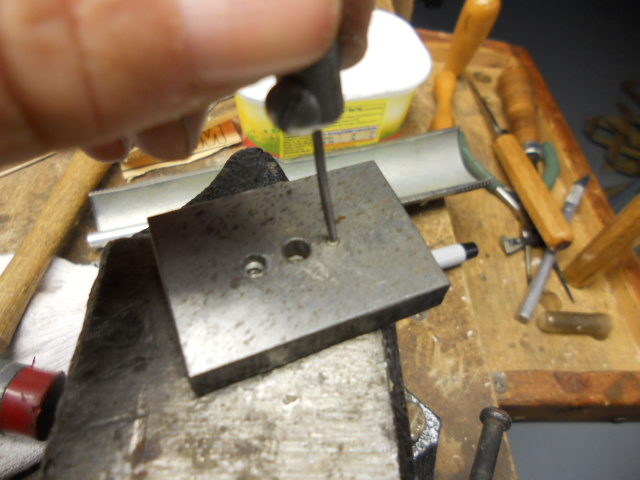

I had made a die for the silver nails. I drilled a hole the thickness of the nails. Then I drilled a slightly larger hole at the top of the same hole. When the nail is pushed down the die hole, the head of the nail mushrooms out. For this reason I slightly countersink the holes in the hunter star.
