A Little Engraving:

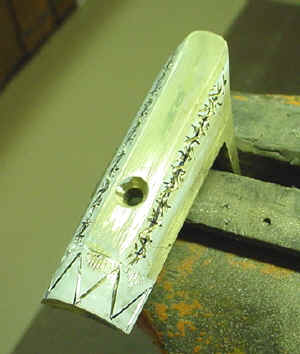

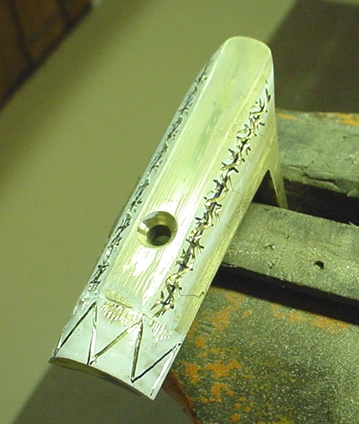

Started to do some engraving on the top of the buttplate. For front end of the buttplate had little triangles. I added my own lines along two of the top flats. I coated the top of the buttplate with china white and then drew the lines. Note I added some fine lines inside the base of the triangles.

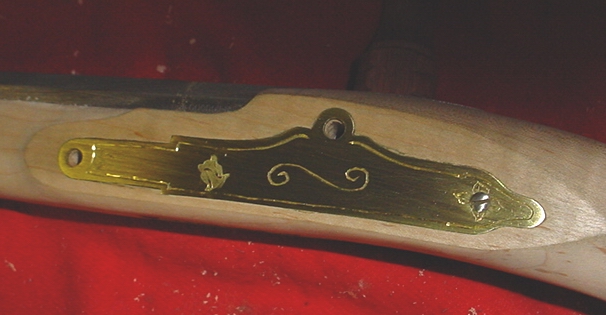

Now I proceeded to the sideplate.  I put a border around the plate. Then I added a floral around the screw on the left. Stamped my shop cartouche on the plate then  a "S" scroll to match up with the wrist carvings.

On to the patch box.  I found out I could use a "Sharpie" marker and draw directly onto the steel. (it was faster and less messy.) Drew out my patterns on the patchbox prior to engraving

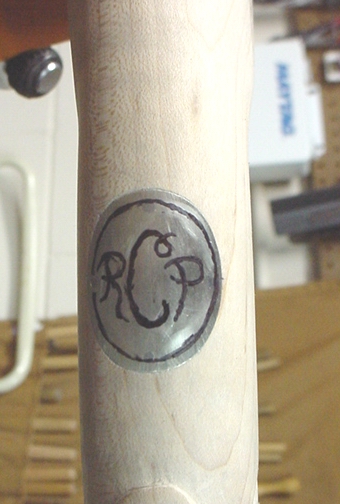

  Then I drew out the monogram on the thumbpiece.

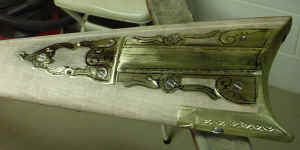

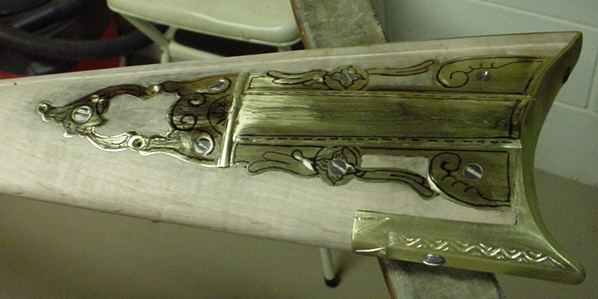

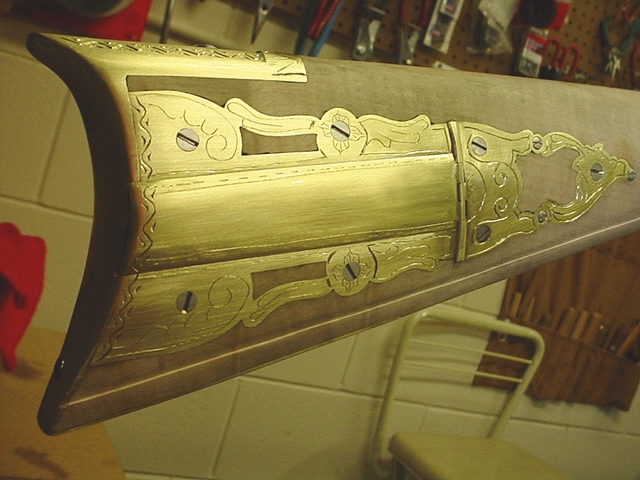

Here is the patchbox after the engraving was done.

And here is the thumbpiece.

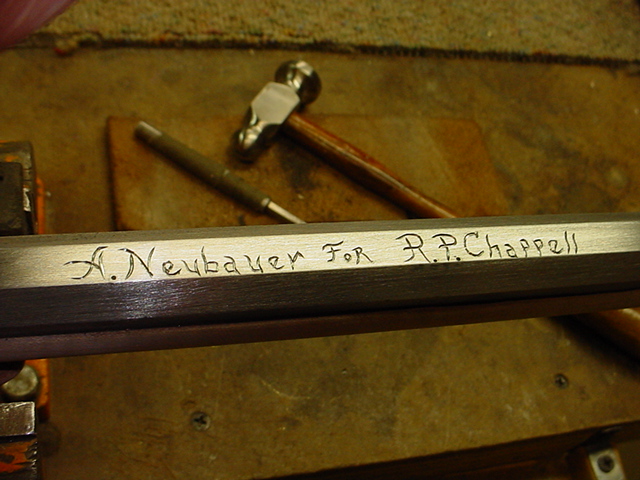

Now I engraved the top flat of the barrel,

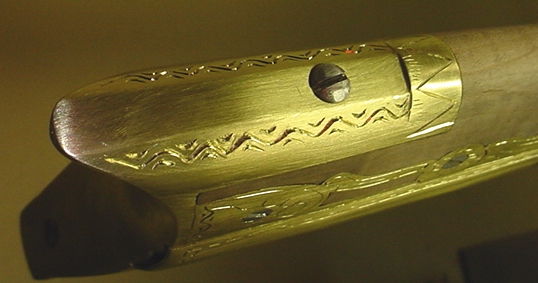

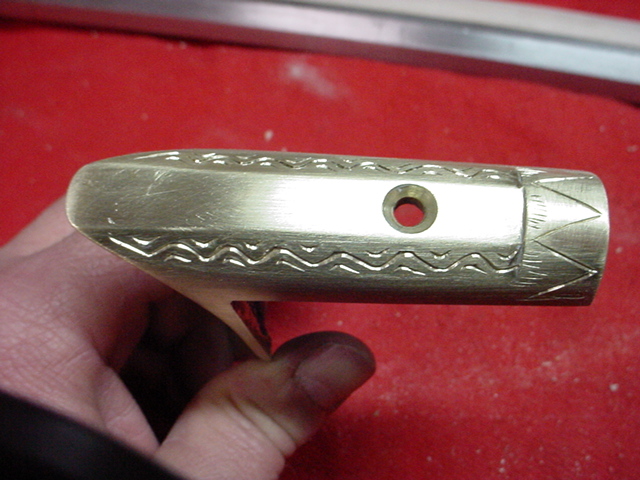

Here is another photo of the buttplate.

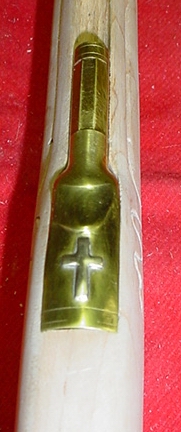

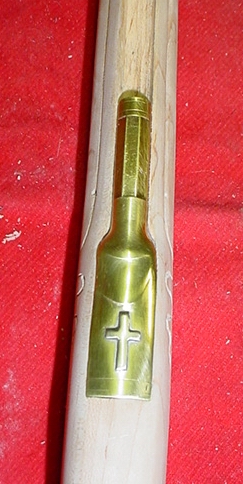

Rev. Chappell wanted a cross of the rifle, so I made one out of pure silver and mounted it to the tail of the rear thimble. This will shine out everytime the gun is leaned up against bench for loading.

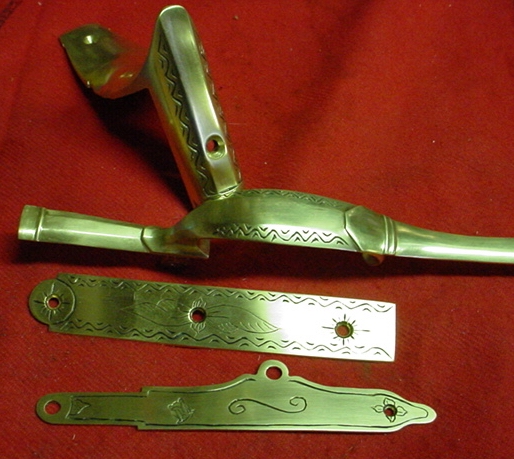

 I completed all the engravings.
