Installed toeplate and started shaping the forearm:

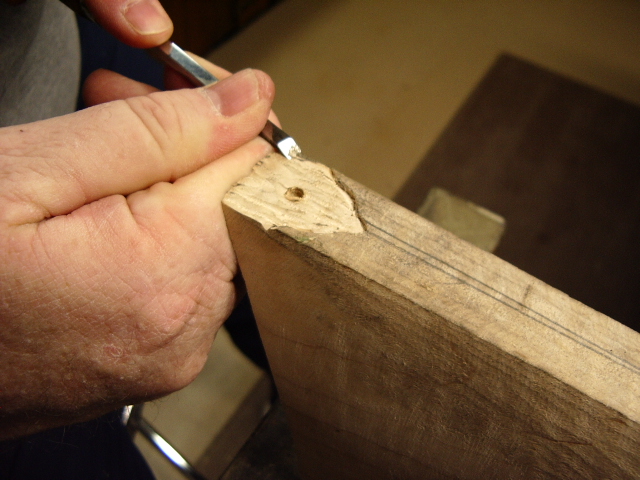

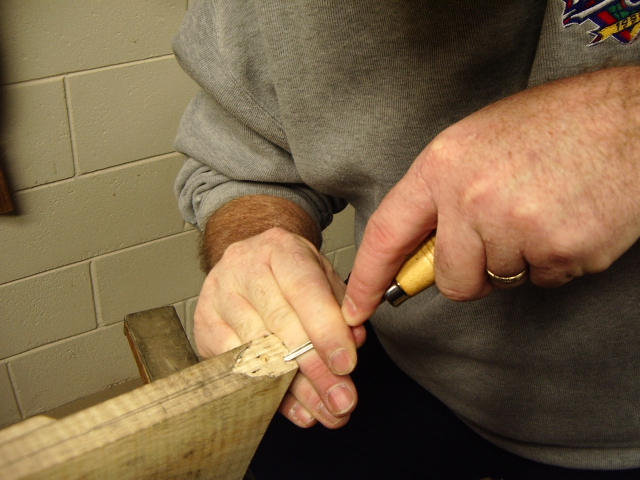

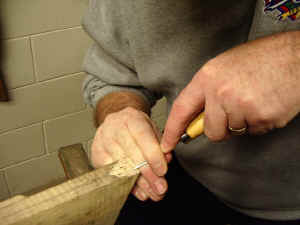

Chptr 5  1-3  Pg 2 033.jpg (230610 bytes) The butt plate was removed. Then a centerline was drawn on the stock. Then BrianChptr 5  1-3  Pg 2 030.jpg (241014 bytes) started inletting the toeplate into the stock. He used a groove tool to remove the wood initially and then followed up with a knife to remove the excess wood.

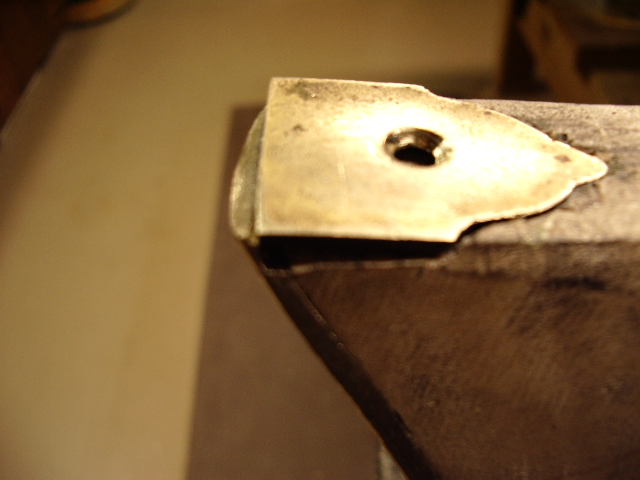

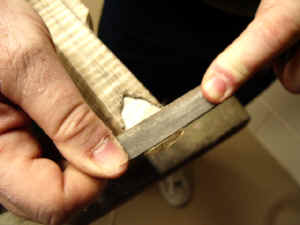

Once the plate was inletted flat to the surface, the butt plate was reinstalled. This indicated some of the brass on the butt plate needed to be removed. Chptr 5  1-3  Pg 2 036.jpg (247866 bytes) A line was drawn across the lower edge of the butt plate.  ThenChptr 5  1-3  Pg 2 037.jpg (252136 bytes) a flat 'safe' file was used to cut into the side of the buttplate. This made a surface that was even with the flat of the toeplate inlay and only cut sideways into the buttplate. This was continued till the toe plate fit in the opening.

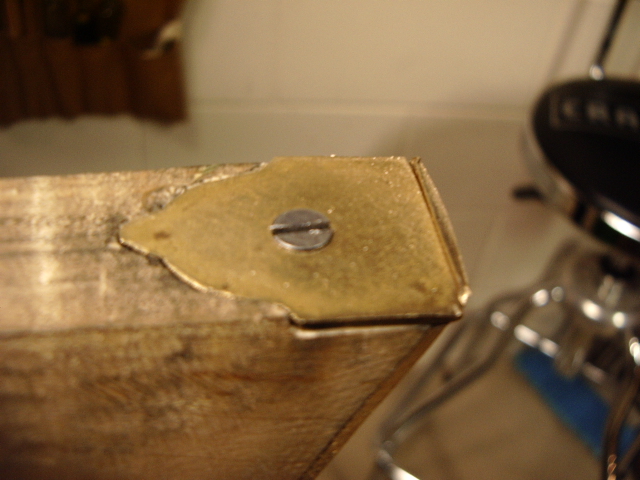

Chptr 5  1-3  Pg 2 038.jpg (251349 bytes)

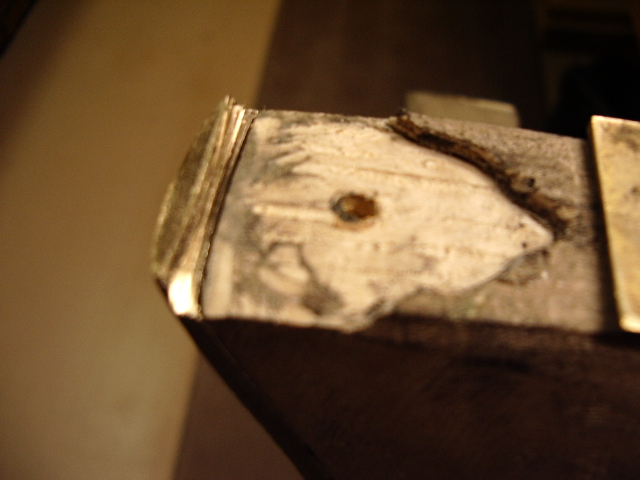

Chptr 5  1-3  Pg 2 034.jpg (246004 bytes)



 Now the plate fits in the opening.

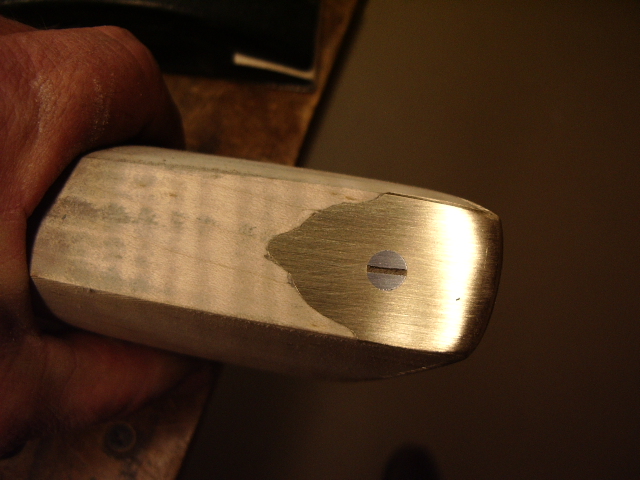

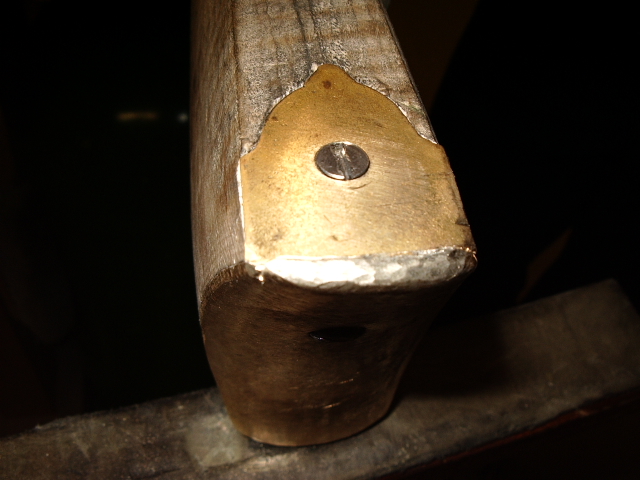

The end of the buttplate was then peened over the top edge of the toe plate. This pulled the parts together and made a tighter fit.  Then the excess brass was filed away. Chptr 5  1-3  Pg 2 039.jpg (251019 bytes)  Toeplate.jpg (248445 bytes)

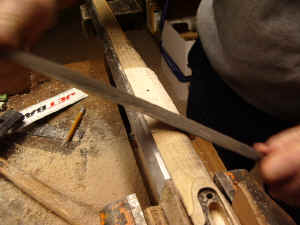

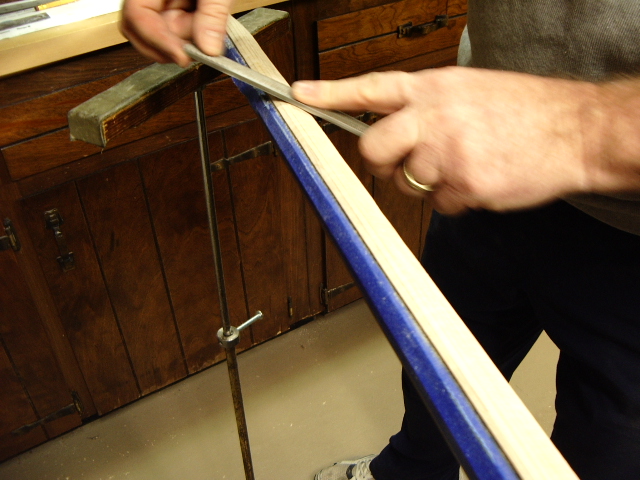

The square block on the forearm was finally removed. Chptr 5  1-3  Pg 2 044.jpg (223715 bytes) The blue painter's tape was put on the gun barrelChptr 5  1-3  Pg 2 045.jpg (241556 bytes) to protect it during filing. We put two layers on the barrel.

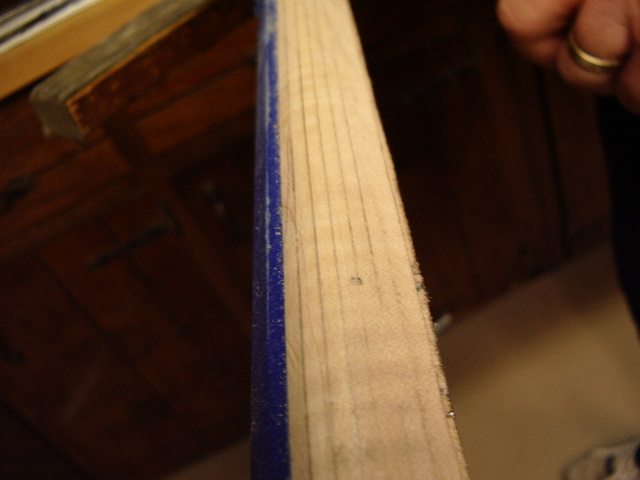

Then we divided the side into 5ths; filed the stock by rolling the file up and taking out the lines individually. and lastly we divided it up into 7ths. Chptr 5  1-3  Pg 2 046.jpg (276017 bytes)
